Bringing a Cheap 24 Year Old High-End Scanner Back to Life – It’s mind blowing

Posted on December 14, 2022December 21, 2022 By Markus

It all started when we needed to scan some slides. With my Screen Cezanne 5000 scanner I would get an amazing quality, but it would be exhausting to do. I have an old Epson scanner that could do it, but it’s also not a very comfortable task. So I had an eye on a Agfa Duoscan Hid scanner. These scanners scan film without the need of a glass. That makes things much easier. They are also great flatbed scanners. With that I take more care about my valuable Screen scanner. The lamps of it are not longer available, when they break its over. But as always it was more difficult to get this scanner up an running than I thought. It needed lots of cleaning and my first idea about a fitting computer was also not my best one.

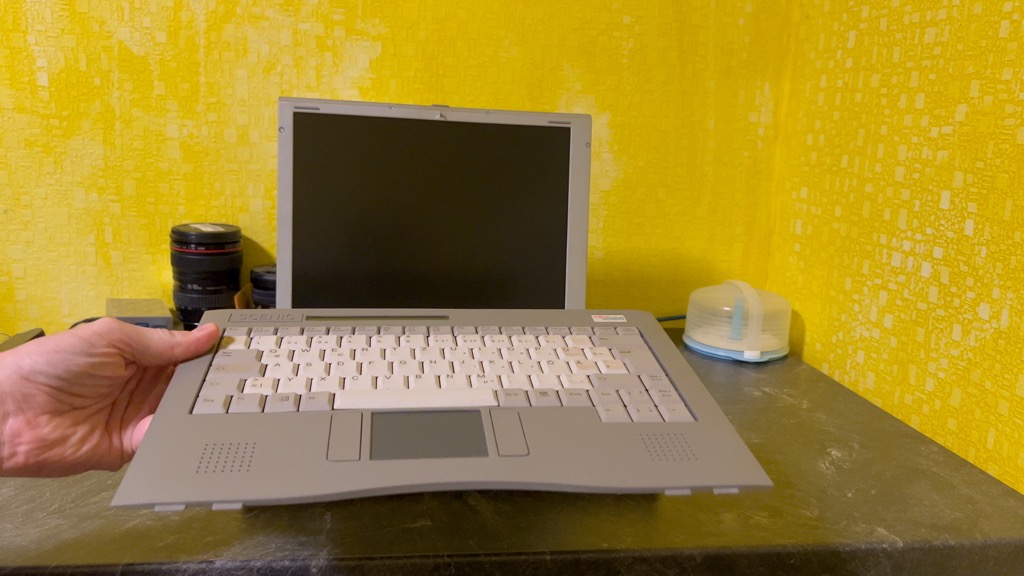

The Scenic Mobile 800 was ahead of its time back then, but now to slow to work as a scan server.
Overhead projectors are obsolete since a long time, but back then it was amazing what that laptop could do.

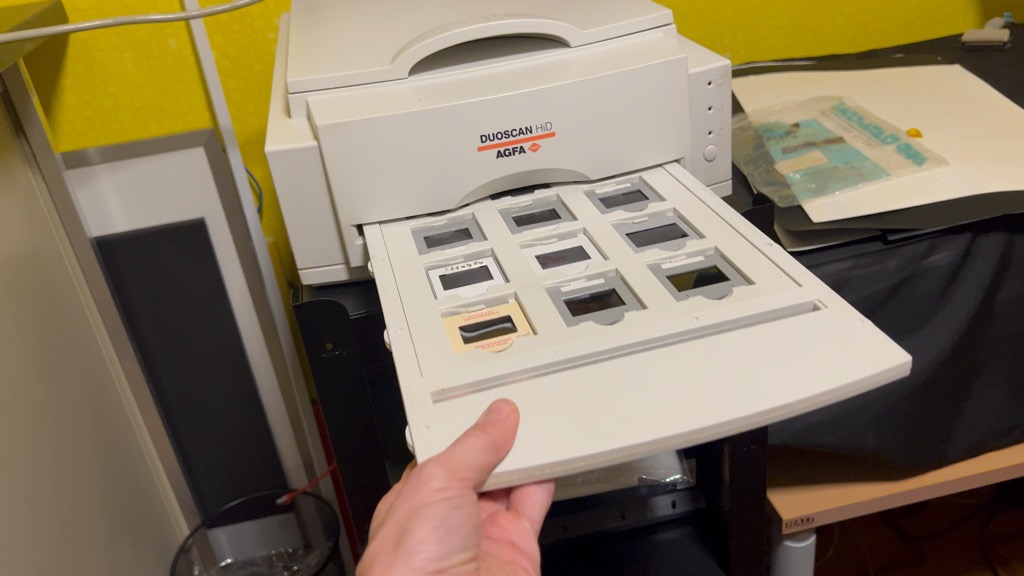

Scanning without the need of glas – a great benefit of this scanner.

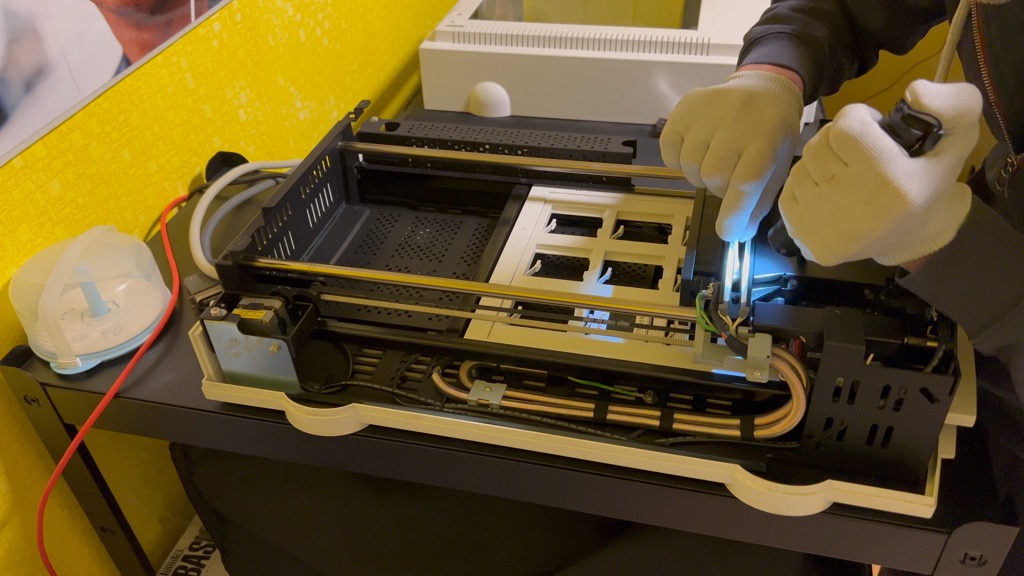

The scanner was very dirty and in the need of many cleanings. I cleaned it 4 times until it worked as expected. Whenever you open the scanner, you must be very careful. First of all disconnect power and SCSI. The Manual mentions also high voltage inside the scanner, I guess they’re mean capacitors or something like that. I already tried to clean the “bottom scanner” that takes care of the film scanning. I could barley see it with a little mirror, but not reach it. And dismounting the main scan unit was way too risky. I think I would never get the scanner calibrated again.

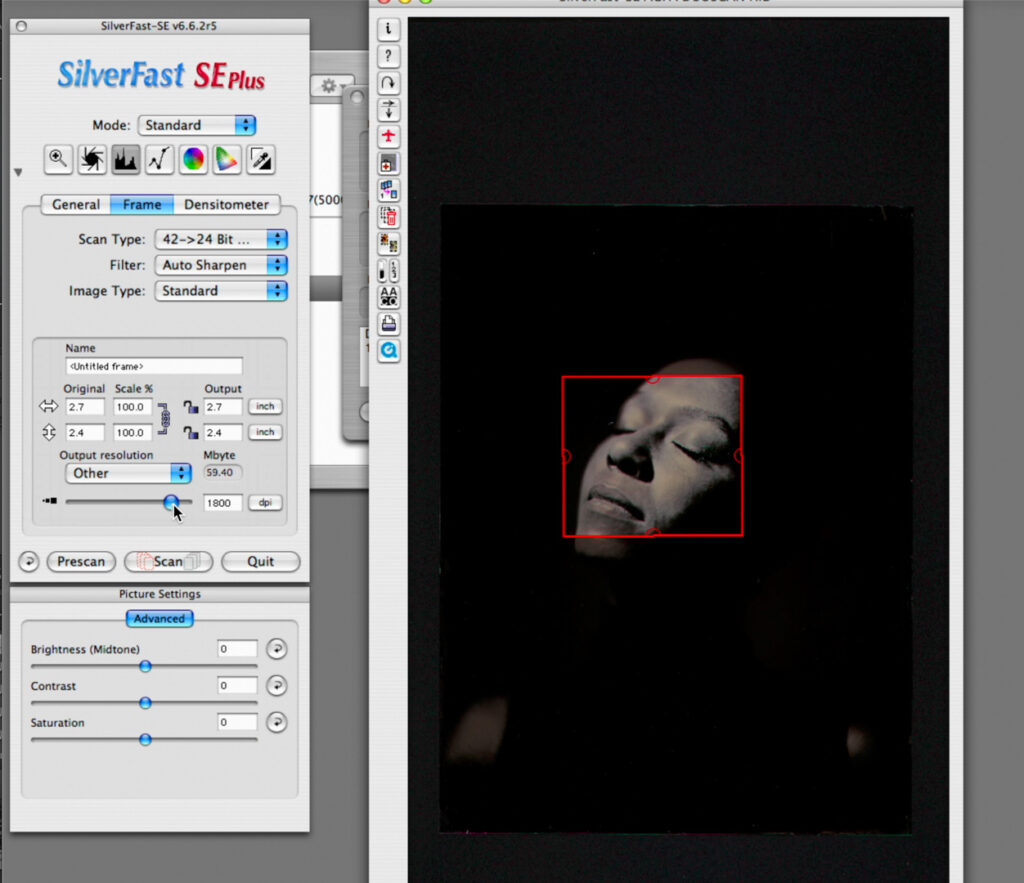

I was very happy for the SilverFast support. I had some issues, that were very specific to my configuration. Also the software is great for scanning film. Check out their website here : https://www.silverfast.com
This scan of one of my moste favourite portraits (Phoebe) was done with the Screen Cezanne and is very similar to the Agfa, see the video for more details
bringing_a_24_old_agfa_duoscan_back_ro_life_markus_hofstaetter_mhaustria.com_1
bringing_a_24_old_agfa_duoscan_back_ro_life_markus_hofstaetter_mhaustria.com_13
bringing_a_24_old_agfa_duoscan_back_ro_life_markus_hofstaetter_mhaustria.com_14
bringing_a_24_old_agfa_duoscan_back_ro_life_markus_hofstaetter_mhaustria.com_10
bringing_a_24_old_agfa_duoscan_back_ro_life_markus_hofstaetter_mhaustria.com_11
bringing_a_24_old_agfa_duoscan_back_ro_life_markus_hofstaetter_mhaustria.com_9
bringing_a_24_old_agfa_duoscan_back_ro_life_markus_hofstaetter_mhaustria.com_8
bringing_a_24_old_agfa_duoscan_back_ro_life_markus_hofstaetter_mhaustria.com_12
bringing_a_24_old_agfa_duoscan_back_ro_life_markus_hofstaetter_mhaustria.com_7
bringing_a_24_old_agfa_duoscan_back_ro_life_markus_hofstaetter_mhaustria.com_6
bringing_a_24_old_agfa_duoscan_back_ro_life_markus_hofstaetter_mhaustria.com_5
bringing_a_24_old_agfa_duoscan_back_ro_life_markus_hofstaetter_mhaustria.com_4
bringing_a_24_old_agfa_duoscan_back_ro_life_markus_hofstaetter_mhaustria.com_3
bringing_a_24_old_agfa_duoscan_back_ro_life_markus_hofstaetter_mhaustria.com_2

[Show as slideshow]

  • Get yourself a beautiful print here: http://prints.mhaustria.com

  • Find all the tools I use here : http://list.mhaustria.com

  • Looking for wet plate gear? http://gear.mhaustria.com

  • Buy me a tea: https://www.buymeacoffee.com/mhaustria

  • Patreon: https://www.patreon.com/mhaustria

  • Get cool analog shirts here http://shirts.mhaustria.com
  • collodion, diy, Gear, scanning, wetplate Tags:35mm, 4x5, 645, agfa duoscan, agfa scanner, analog photography, beautiful woman, cezanne, collodion, Durchlicht scanner, field camera, film photography, film scan, flachbett Scanner, flatbed scaner, large format, large format camera, Mac OS, mas os x, nassplatte, portrait photography, portraiture, power mac, power mac g4, quicksilver, scanner cleaning, scenic mobile, screen scanner cezanne, siemens, tintype, troubleshooting, tutorial, ultra large format, wet plate scan, windows 2000
